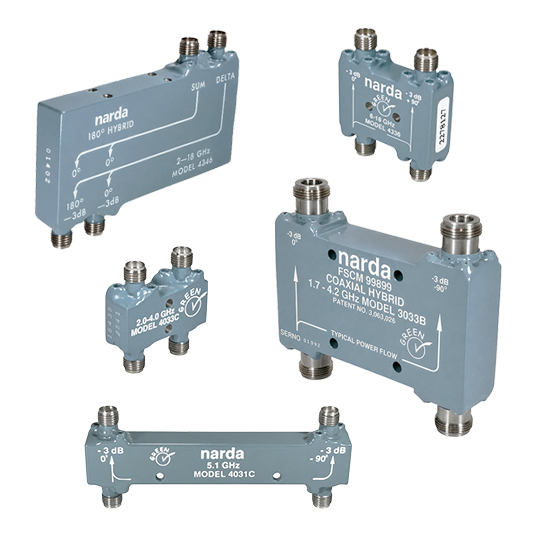

Couplers - Hybrids

Narda-MITEQ offers RF and microwave hybrid couplers designed to support a wide range of signal distribution, combining, and phase-management applications across broad frequency ranges, up to 18GHz. With standard offerings that include 90-degree and 180-degree hybrids, ultra-broadband models, mini hybrids, and high-power configurations, these components help engineers address demanding requirements in laboratory, production, and integrated system environments.

Hybrid Couplers Datasheets:

• 125 W CW Power 90° Hybrid (PDF)
• Ultra-Broadband 180° and 90° Hybrids (PDF)
• SMA Multi-Octave 90° Hybrid (PDF)
• Type N Coaxial 90° Hybrids (PDF)
• SMA Miniature Stripline 90° Coaxial Mini-Hybrids (PDF)

To view or download information on specific Hybrid Coupler models, please click on one of the sub-categories below.

• Hybrids - 90-Degree 0.25 to 16 GHz (Mini Hybrids)
• Hybrids - 90-Degree SMA (F) 6 to 18 GHz 125 Watt (High Power)
• Hybrids - 90-Degree SMA (F) 2 to 18 GHz 30 Watt (Ultra-Broadband)
• Hybrids - 180-Degree SMA (F) 2 to 18 GHz 30 Watt (Ultra-Broadband)
• Hybrids - 90-Degree SMA (F) .5 to 8 GHz 30 Watt (Multi-Octave)
• Hybrids - 90-Degree SMA (F) 2 to 18 GHz 30 Watt (Multi-Octave)
• Hybrids - 90-Degree Type N (F) 0.82 to 4.2 GHz (High-Power)
