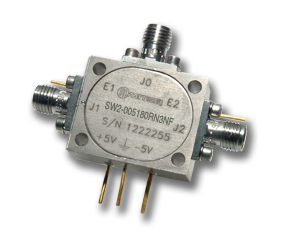

Model: SW2-005180RN3NF

Specifications
Frequency Min.500 MHz
# Throws2
# Poles1
Frequency Max.18000 MHz
# Poles1
# Throws2
Insertion Loss2.3 dB Max
Isolation55 dB Min
VSWR1.8 Min
RiseTime Typ.20 ns
Fall Time (Typical)20 ns
On/Off Time (Max)40 ns
Positive Supply Voltage5 V
Negative Supply Voltage-15 V
ReflectiveTrue
Absorptive0
Inverting Logic0
Documents for
SW2-005180RN3NF
Datasheet:
MITEQ-SW2-005180RN3NF (PDF)

ECCN: EAR
Similar Models
SW2-005020AI1HF
SW2-005020AI1HM
SW2-005020AI1NF
SW2-005020AI1NM
SW2-005020AI2HF
SW2-005020AI2HM
SW2-005020AI2NF
SW2-005020AI2NM
SW2-005020AI3HF
SW2-005020AI3HM
SW2-005020AI3NF
SW2-005020AI3NM
SW2-005020AI4HF
SW2-005020AI4HM
SW2-005020AI4NF
SW2-005020AI4NM
SW2-005020AI5HF
SW2-005020AI5HM
SW2-005020AI5NF
SW2-005020AI5NM

Please review the product PDF which contains the full and complete specifications.
For conflicts between the information on this page and the product PDF, the product PDF takes precedence.
