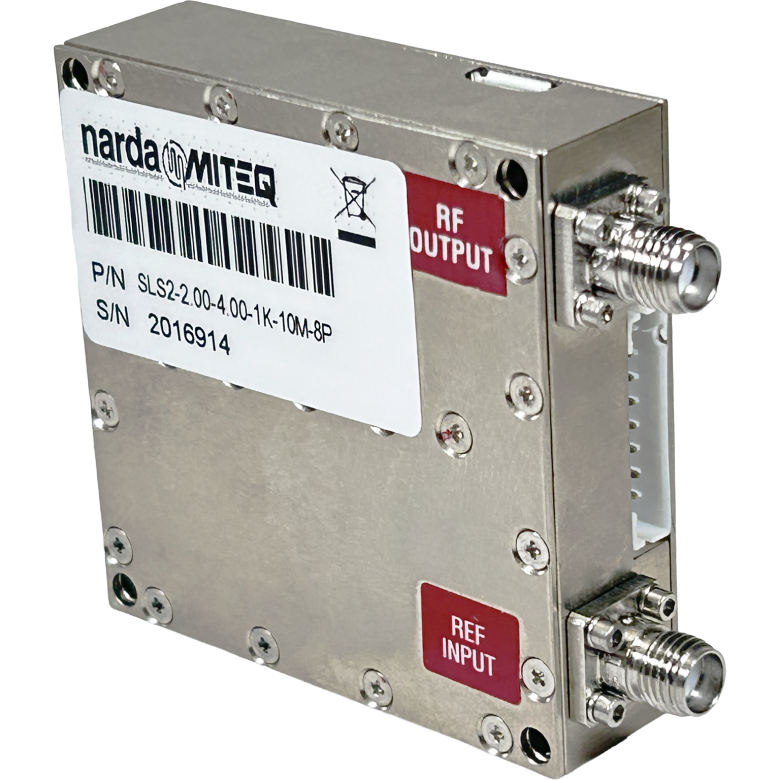

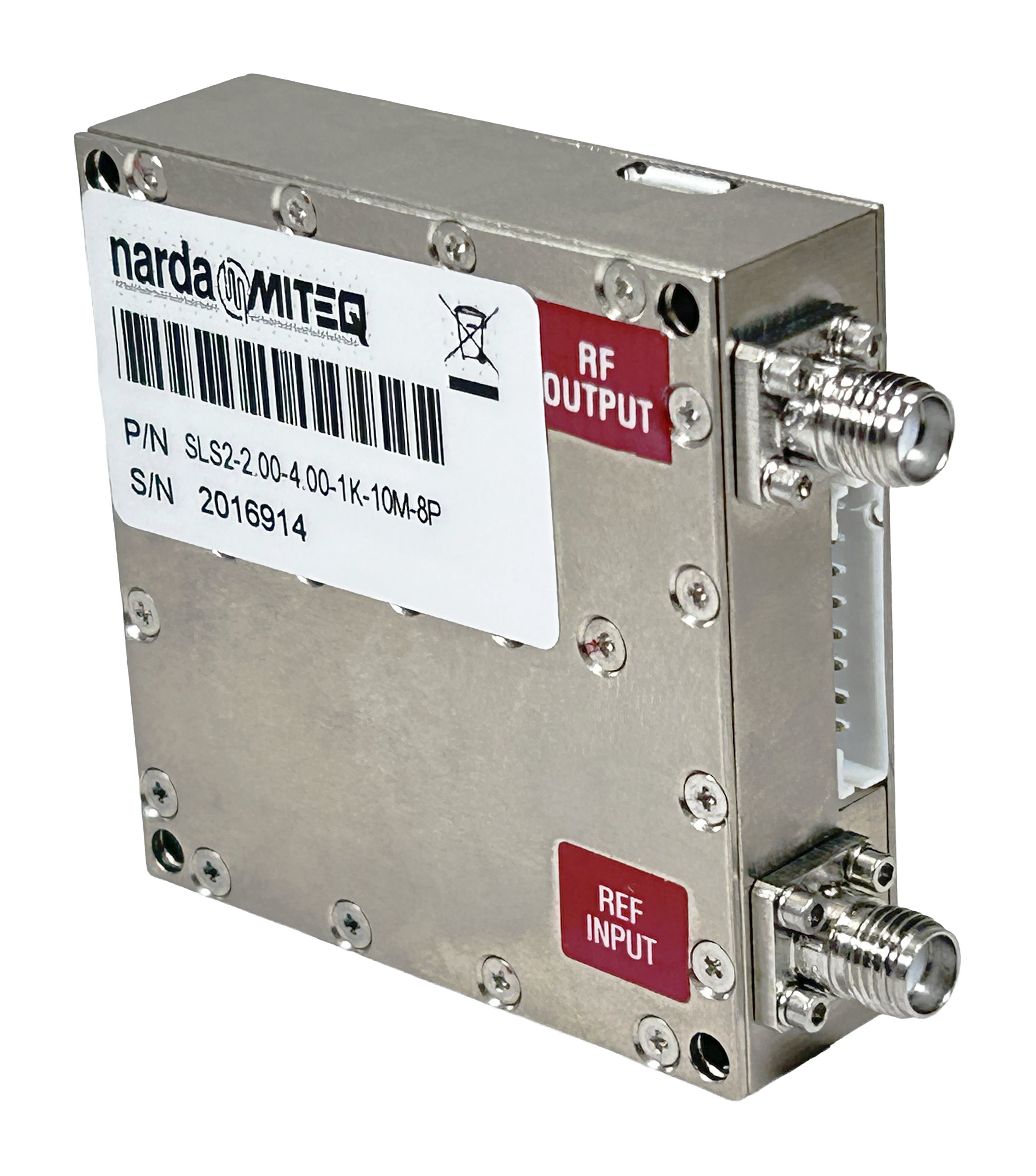

Synthesizers

Narda-MITEQ designs and manufactures various types of Frequency Synthesizers, including sources based on phase-locked-loop (PLL) technology to lock the phase of a voltage-controlled oscillator (VCO) to that of an inherently more stable reference source, such as a temperature-compensated crystal oscillator (TCXO) or an oven-controlled crystal oscillator (OCXO).

Such synthesizers can be designed with a single loop for optimal frequency switching speed, or with multiple loops when lower noise performance is required. In essence, they can be called integer-N synthesizers, where N is the multiplication factor used to determine the output frequency as a multiple of the reference source frequency.

Narda-MITEQ's SPLS Series phase-locked source offers excellent phase noise and spurious performance in a miniature 2.25" width x 2.25" length x 0.75" height and is available in bands of synthesized frequencies from 40 MHz to 15 GHz. Units can operate from either external reference, or internal TCXO with stability of 1 PPM.

Download PDF Datasheets:
SLS2(A) Series (Phase Locked Synthesizer)
SPLS Space Qualified Synthesizers

Narda-MITEQ can offer customized solutions that meet your specific requirements.

Please contact Component Sales with any special requirements you may have:
Tel: 631-231-9220

Narda-MITEQ Frequency Synthesizers are backed by Narda-MITEQ's Warranty and most are available as RoHS Compliant components.
