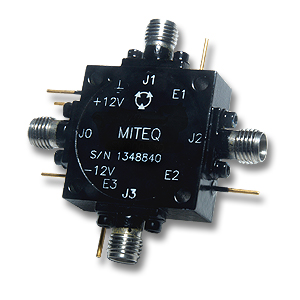

Model: SW3-005205RI1NF

Specifications
Frequency Min.500 MHz
# Throws3
# Poles1
Frequency Max.20500 MHz
# Poles1
# Throws3
Insertion Loss3 dB Max
Isolation60 dB Min
VSWR1.8 Min
RiseTime Typ.20 ns
Fall Time (Typical)20 ns
On/Off Time (Max)180 ns
Positive Supply Voltage5 V
Positive Supply Current85 mA
Negative Supply Voltage-12 V
Negative Supply Current85 mA
ReflectiveTrue
Absorptive0
Inverting LogicTrue
Documents for
SW3-005205RI1NF
Datasheet:
MITEQ-SW3-005205RI1NF (PDF)

ECCN: EAR
Similar Models
SW3-005020AI1HF
SW3-005020AI1HM
SW3-005020AI1NF
SW3-005020AI1NM
SW3-005020AI2HF
SW3-005020AI2HM
SW3-005020AI2NF
SW3-005020AI2NM
SW3-005020AI3HF
SW3-005020AI3HM
SW3-005020AI3NF
SW3-005020AI3NM
SW3-005020AI4HF
SW3-005020AI4HM
SW3-005020AI4NF
SW3-005020AI4NM
SW3-005020AI5HF
SW3-005020AI5HM
SW3-005020AI5NF
SW3-005020AI5NM

Please review the product PDF which contains the full and complete specifications.
For conflicts between the information on this page and the product PDF, the product PDF takes precedence.
