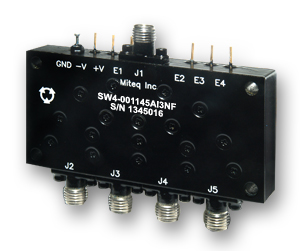

Model: SW4-001145AI3NF

Specifications
Frequency Min.70 MHz
# Throws4
# Poles1
Frequency Max.14500 MHz
# Poles1
# Throws4
Insertion Loss4 dB Max
Isolation80 dB Min
VSWR2 Min
On/Off Time (Max)1000 ns
Positive Supply Voltage5 V
Negative Supply Voltage-12 V
Reflective0
AbsorptiveTrue
Inverting Logic0
Documents for
SW4-001145AI3NF
Datasheet:
MITEQ-SW4-001145I3NF (PDF)

ECCN: EAR
Similar Models
SW4-001100AN1HF
SW4-001100AN1HM
SW4-001100AN1NF
SW4-001100AN1NM
SW4-001100AN2HF
SW4-001100AN2HM
SW4-001100AN2NF
SW4-001100AN2NM
SW4-001100AN3HF
SW4-001100AN3HM
SW4-001100AN3NF
SW4-001100AN3NM
SW4-001100AN4HF
SW4-001100AN4HM
SW4-001100AN4NF
SW4-001100AN4NM
SW4-001100AN5HF
SW4-001100AN5HM
SW4-001100AN5NF
SW4-001100AN5NM

Please review the product PDF which contains the full and complete specifications.
For conflicts between the information on this page and the product PDF, the product PDF takes precedence.
