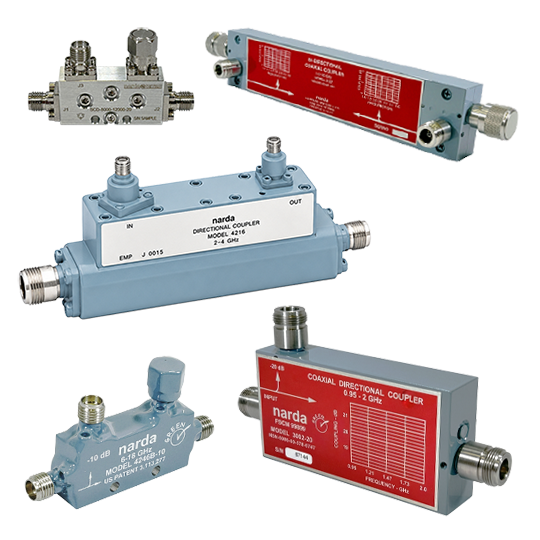

Couplers - Directional

Narda-MITEQ manufactures and designs a line of RF and Microwave coaxial Directional Couplers, covering a wide range of applications from DC to 40 GHz. These Directional Couplers boast both superior performance and reliability. They feature low insertion losses, ultra-broadband performance, off-the-shelf delivery and compact designs.

Our Directional Couplers are suitable for 40 Gb systems and typical applications include: OC768 transmitters and receivers, general purpose test and measurement systems. Some options are available such as custom frequency bandwidths and different connector outputs. They are often used at the input or the output of an amplifier to prevent loading of the bias voltages.

Applications include:

EW Systems
Radar
Millimeter Wave Communications
OEM Test Equipment
100 Watt TWT Power Monitor Circuits
BIT Circuits
Jammers
Test Equipment/ATE
Power Amplifier Control
Radar-Transmitter Circuits
100 Watt Miniature Stripline Design
Measurement of High Power RF Signals
Reliable Monitoring of TWT High Power Amplifiers
Testing of EW Systems with High RF Power Outputs
Power Tube Test Stands
Satellite Communication Transmitters
Power Monitoring and Transmission Protection Circuits

For detailed application notes for Couplers, please click here.

To view or download information on specific Coupler Models, please click on one of the sub-categories below.

Full Couplers - Directional Catalog Listing

Directional Coupler Search

Not all fields are required.

Frequency Range

Min to Max

Search range		WiderNarrowerExact
Frequency Tolerance	(%)

Coupling Factor	(dB)
Insertion Loss Max	(dB)	Max
Isolation	(dB)	Min
Average Power Min	(dBm)	Min
Uni-directional / Bi-directional
ROHS

Results Per Page
