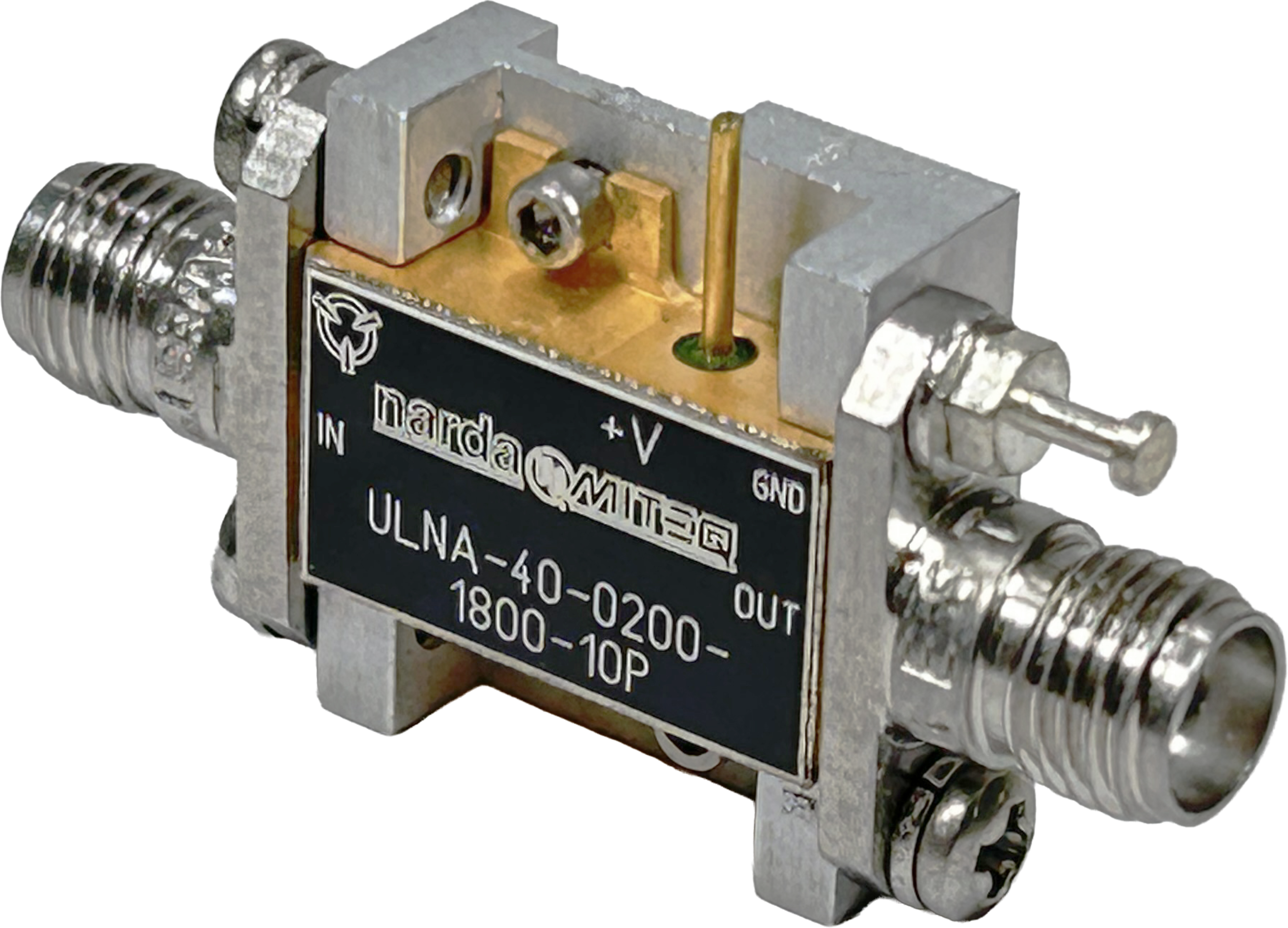

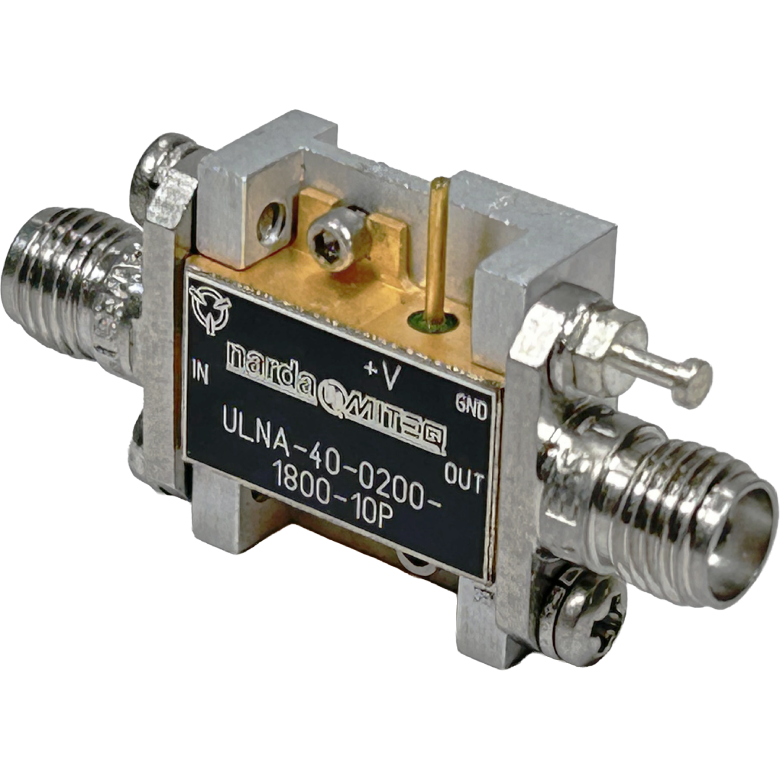

New Product: Broadband Ultra Low Noise Amplifiers (ULNA)
Narda-MITEQ's Ultra Low Noise Amplifiers(ULNAs) offer reduced noise figure while maintaining gain, linear power and mechanical outline of Narda-MITEQ general-purpose LNA series amplifiers now available with broadband coverage from VHF to Ka band (0.1 to 40GHz).
Our ULNA amplifiers use InP-based HEMTs to enable the ultra-low noise performance and leverage Narda-MITEQ's extensive expertise with design and fabrication of low-noise amplifiers for high-frequency applications, challenging applications, and harsh environments.
Key features of Narda-MITEQ's Ultra-Low LNA (ULNAs) series:
- Ultra-Low Noise with up to 0.5dB reduction in NF from 2 to 18GHz vs. standard LNA series
- Broadband frequency coverage from VHF (100 MHz) to Ka-band (40GHz)
- Selection of gain levels from 25 to 40dB and linear power levels from 5 to 15dBm
- Use of standard LNA outlines in Aluminum or Kovar with hermetic seal options
Click on a ULNA Group to show individual parts within that group
| ULNA Groups | Frequency Range (GHz) | Datasheet |
|---|---|---|
| ULNA-XX-0100-0200-XXP | 1 - 2 | View PDF |
| ULNA-XX-0010-0400-XXP | 0.1 - 4 | View PDF |
| ULNA-XX-0200-0400-XXP | 2 - 4 | View PDF |
| ULNA-XX-0010-0800-XXP | 0.1 - 8 | View PDF |
| ULNA-XX-0200-0800-XXP | 2 - 8 | View PDF |
| ULNA-XX-0400-0800-XXP | 4 - 8 | View PDF |
| ULNA-XX-0010-1200-XXP | 0.1 - 12 | View PDF |
| ULNA-XX-0200-1200-XXP | 2 - 12 | View PDF |
| ULNA-XX-0400-1200-XXP | 4 - 12 | View PDF |
| ULNA-XX-0800-1200-XXP | 8 - 12 | View PDF |
| ULNA-XX-0010-1800-XXP | 0.1 - 18 | View PDF |
| ULNA-XX-0200-1800-XXP | 2 - 18 | View PDF |
| ULNA-XX-0600-1800-XXP | 6 - 18 | View PDF |
| ULNA-XX-1200-1800-XXP | 12 - 18 | View PDF |
| ULNA-XX-0010-2600-XXP | 0.1 - 26 | View PDF |
| ULNA-XX-0200-2600-XXP | 2 - 26 | View PDF |
| ULNA-XX-1200-2600-XXP | 12 - 26 | View PDF |
| ULNA-XX-1800-2650-XXP | 18 - 26.5 | View PDF |
| ULNA-XX-0010-4000-XXP | 0.1 - 40 | View PDF |
| ULNA-XX-0200-4000-XXP | 2 - 40 | View PDF |
| ULNA-XX-1800-4000-XXP | 18 - 40 | View PDF |
| ULNA-XX-2650-4000-XXP | 26.5 - 40 | View PDF |
Download PDF Brochure:
Ultra Low Noise Amplifier ULNA
| ULNA-XX-0100-0200-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0100-0200-5P | 1 - 2 | 20 | 5 | 0.7 | View PDF | |
| ULNA-20-0100-0200-10P | 1 - 2 | 20 | 10 | 0.7 | View PDF | |
| ULNA-20-0100-0200-15P | 1 - 2 | 20 | 15 | 0.7 | View PDF | |
| ULNA-30-0100-0200-5P | 1 - 2 | 30 | 5 | 0.6 | View PDF | |
| ULNA-30-0100-0200-10P | 1 - 2 | 30 | 10 | 0.6 | View PDF | |
| ULNA-30-0100-0200-15P | 1 - 2 | 30 | 15 | 0.6 | View PDF | |
| ULNA-40-0100-0200-5P | 1 - 2 | 40 | 5 | 0.6 | View PDF | |
| ULNA-40-0100-0200-10P | 1 - 2 | 40 | 10 | 0.6 | View PDF | |
| ULNA-40-0100-0200-15P | 1 - 2 | 40 | 15 | 0.6 | View PDF | |
| ULNA-XX-0010-0400-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0010-0400-5P | 0.1 - 4 | 20 | 5 | 1.2 | View PDF | |
| ULNA-20-0010-0400-15P | 0.1 - 4 | 20 | 15 | 1.2 | View PDF | |
| ULNA-20-0010-0400-15P | 0.1 - 4 | 20 | 15 | 1.2 | View PDF | |
| ULNA-30-0010-0400-5P | 0.1 - 4 | 30 | 5 | 1.1 | View PDF | |
| ULNA-30-0010-0400-10P | 0.1 - 4 | 30 | 10 | 1.1 | View PDF | |
| ULNA-30-0010-0400-15P | 0.1 - 4 | 30 | 15 | 1.1 | View PDF | |
| ULNA-40-0010-0400-5P | 0.1 - 4 | 40 | 5 | 1.1 | View PDF | |
| ULNA-40-0010-0400-10P | 0.1 - 4 | 40 | 10 | 1.1 | View PDF | |
| ULNA-40-0010-0400-15P | 0.1 - 4 | 40 | 15 | 1.1 | View PDF | |
| ULNA-XX-0200-0400-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0200-0400-5P | 2 - 4 | 20 | 5 | 0.6 | View PDF | |
| ULNA-20-0200-0400-10P | 2 - 4 | 20 | 10 | 0.6 | View PDF | |
| ULNA-20-0200-0400-15P | 2 - 4 | 20 | 15 | 0.6 | View PDF | |
| ULNA-30-0200-0400-5P | 2 - 4 | 30 | 5 | 0.5 | View PDF | |
| ULNA-30-0200-0400-10P | 2 - 4 | 30 | 10 | 0.5 | View PDF | |
| ULNA-30-0200-0400-15P | 2 - 4 | 30 | 15 | 0.5 | View PDF | |
| ULNA-40-0200-0400-5P | 2 - 4 | 40 | 5 | 0.5 | View PDF | |
| ULNA-40-0200-0400-10P | 2 - 4 | 40 | 10 | 0.5 | View PDF | |
| ULNA-40-0200-0400-15P | 2 - 4 | 40 | 15 | 0.5 | View PDF | |
| ULNA-XX-0010-0800-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0010-0800-5P | 0.1 - 8 | 20 | 5 | 1.4 | View PDF | |
| ULNA-20-0010-0800-10P | 0.1 - 8 | 20 | 10 | 1.4 | View PDF | |
| ULNA-20-0010-0800-15P | 0.1 - 8 | 20 | 15 | 1.4 | View PDF | |
| ULNA-30-0010-0800-5P | 0.1 - 8 | 30 | 5 | 1.3 | View PDF | |
| ULNA-30-0010-0800-10P | 0.1 - 8 | 30 | 10 | 1.3 | View PDF | |
| ULNA-30-0010-0800-15P | 0.1 - 8 | 30 | 15 | 1.3 | View PDF | |
| ULNA-40-0010-0800-5P | 0.1 - 8 | 40 | 5 | 1.3 | View PDF | |
| ULNA-40-0010-0800-10P | 0.1 - 8 | 40 | 10 | 1.3 | View PDF | |
| ULNA-40-0010-0800-15P | 0.1 - 8 | 40 | 15 | 1.3 | View PDF | |
| ULNA-XX-0200-0800-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0200-0800-5P | 2 - 8 | 20 | 5 | 0.9 | View PDF | |
| ULNA-20-0200-0800-10P | 2 - 8 | 20 | 10 | 0.9 | View PDF | |
| ULNA-20-0200-0800-15P | 2 - 8 | 20 | 15 | 0.9 | View PDF | |
| ULNA-30-0200-0800-5P | 2 - 8 | 30 | 5 | 0.8 | View PDF | |
| ULNA-30-0200-0800-10P | 2 - 8 | 30 | 10 | 0.8 | View PDF | |
| ULNA-30-0200-0800-15P | 2 - 8 | 30 | 15 | 0.8 | View PDF | |
| ULNA-40-0200-0800-5P | 2 - 8 | 40 | 5 | 0.8 | View PDF | |
| ULNA-40-0200-0800-10P | 2 - 8 | 40 | 10 | 0.8 | View PDF | |
| ULNA-40-0200-0800-15P | 2 - 8 | 40 | 15 | 0.8 | View PDF | |
| ULNA-XX-0400-0800-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0400-0800-5P | 4 - 8 | 20 | 5 | 0.65 | View PDF | |
| ULNA-20-0400-0800-10P | 4 - 8 | 20 | 10 | 0.65 | View PDF | |
| ULNA-20-0400-0800-15P | 4 - 8 | 20 | 15 | 0.65 | View PDF | |
| ULNA-30-0400-0800-5P | 4 - 8 | 30 | 5 | 0.6 | View PDF | |
| ULNA-30-0400-0800-10P | 4 - 8 | 30 | 10 | 0.6 | View PDF | |
| ULNA-30-0400-0800-15P | 4 - 8 | 30 | 15 | 0.6 | View PDF | |
| ULNA-40-0400-0800-5P | 4 - 8 | 40 | 5 | 0.6 | View PDF | |
| ULNA-40-0400-0800-10P | 4 - 8 | 40 | 10 | 0.6 | View PDF | |
| ULNA-40-0400-0800-15P | 4 - 8 | 40 | 15 | 0.6 | View PDF | |
| ULNA-XX-0010-1200-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0010-1200-5P | 0.1 - 12 | 20 | 5 | 1.6 | View PDF | |
| ULNA-20-0010-1200-10P | 0.1 - 12 | 20 | 10 | 1.6 | View PDF | |
| ULNA-20-0010-1200-15P | 0.1 - 12 | 20 | 15 | 1.6 | View PDF | |
| ULNA-30-0010-1200-5P | 0.1 - 12 | 30 | 5 | 1.5 | View PDF | |
| ULNA-30-0010-1200-10P | 0.1 - 12 | 30 | 10 | 1.5 | View PDF | |
| ULNA-30-0010-1200-15P | 0.1 - 12 | 30 | 15 | 1.5 | View PDF | |
| ULNA-40-0010-1200-5P | 0.1 - 12 | 40 | 5 | 1.5 | View PDF | |
| ULNA-40-0010-1200-10P | 0.1 - 12 | 40 | 10 | 1.5 | View PDF | |
| ULNA-40-0010-1200-15P | 0.1 - 12 | 40 | 15 | 1.5 | View PDF | |
| ULNA-XX-0200-1200-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0200-1200-5P | 2 - 12 | 20 | 5 | 1.5 | View PDF | |
| ULNA-20-0200-1200-10P | 2 - 12 | 20 | 10 | 1.5 | View PDF | |
| ULNA-20-0200-1200-15P | 2 - 12 | 20 | 15 | 1.5 | View PDF | |
| ULNA-30-0200-1200-5P | 2 - 12 | 30 | 5 | 1.4 | View PDF | |
| ULNA-30-0200-1200-10P | 2 - 12 | 30 | 10 | 1.4 | View PDF | |
| ULNA-30-0200-1200-15P | 2 - 12 | 30 | 15 | 1.4 | View PDF | |
| ULNA-40-0200-1200-5P | 2 - 12 | 40 | 5 | 1.4 | View PDF | |
| ULNA-40-0200-1200-10P | 2 - 12 | 40 | 10 | 1.4 | View PDF | |
| ULNA-40-0200-1200-15P | 2 - 12 | 40 | 15 | 1.4 | View PDF | |
| ULNA-XX-0400-1200-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0400-1200-5P | 4 - 12 | 20 | 5 | 1.4 | View PDF | |
| ULNA-20-0400-1200-10P | 4 - 12 | 20 | 10 | 1.4 | View PDF | |
| ULNA-20-0400-1200-15P | 4 - 12 | 20 | 15 | 1.4 | View PDF | |
| ULNA-30-0400-1200-5P | 4 - 12 | 30 | 5 | 1.3 | View PDF | |
| ULNA-30-0400-1200-10P | 4 - 12 | 30 | 10 | 1.3 | View PDF | |
| ULNA-30-0400-1200-15P | 4 - 12 | 30 | 15 | 1.3 | View PDF | |
| ULNA-40-0400-1200-5P | 4 - 12 | 40 | 5 | 1.3 | View PDF | |
| ULNA-40-0400-1200-10P | 4 - 12 | 40 | 10 | 1.3 | View PDF | |
| ULNA-40-0400-1200-15P | 4 - 12 | 40 | 15 | 1.3 | View PDF | |
| ULNA-XX-0800-1200-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0800-1200-5P | 8 - 12 | 20 | 5 | 0.75 | View PDF | |
| ULNA-20-0800-1200-10P | 8 - 12 | 20 | 10 | 0.75 | View PDF | |
| ULNA-20-0800-1200-15P | 8 - 12 | 20 | 15 | 0.75 | View PDF | |
| ULNA-30-0800-1200-5P | 8 - 12 | 30 | 5 | 0.7 | View PDF | |
| ULNA-30-0800-1200-10P | 8 - 12 | 30 | 10 | 0.7 | View PDF | |
| ULNA-30-0800-1200-15P | 8 - 12 | 30 | 15 | 0.7 | View PDF | |
| ULNA-40-0800-1200-5P | 8 - 12 | 40 | 5 | 0.7 | View PDF | |
| ULNA-40-0800-1200-10P | 8 - 12 | 40 | 10 | 0.7 | View PDF | |
| ULNA-40-0800-1200-15P | 8 - 12 | 40 | 15 | 0.7 | View PDF | |
| ULNA-XX-0010-1800-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0010-1800-5P | 0.1 - 18 | 20 | 5 | 2.1 | View PDF | |
| ULNA-20-0010-1800-10P | 0.1 - 18 | 20 | 10 | 2.1 | View PDF | |
| ULNA-20-0010-1800-15P | 0.1 - 18 | 20 | 15 | 2.1 | View PDF | |
| ULNA-30-0010-1800-5P | 0.1 - 18 | 30 | 5 | 2 | View PDF | |
| ULNA-30-0010-1800-10P | 0.1 - 18 | 30 | 10 | 2 | View PDF | |
| ULNA-30-0010-1800-15P | 0.1 - 18 | 30 | 15 | 2 | View PDF | |
| ULNA-40-0010-1800-5P | 0.1 - 18 | 40 | 5 | 2 | View PDF | |
| ULNA-40-0010-1800-10P | 0.1 - 18 | 40 | 10 | 2 | View PDF | |
| ULNA-40-0010-1800-15P | 0.1 - 18 | 40 | 15 | 2 | View PDF | |
| ULNA-XX-0200-1800-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0200-1800-5P | 2 - 18 | 20 | 5 | 2.1 | View PDF | |
| ULNA-20-0200-1800-10P | 2 - 18 | 20 | 10 | 2.1 | View PDF | |
| ULNA-20-0200-1800-15P | 2 - 18 | 20 | 15 | 2.1 | View PDF | |
| ULNA-30-0200-1800-5P | 2 - 18 | 30 | 5 | 2 | View PDF | |
| ULNA-30-0200-1800-10P | 2 - 18 | 30 | 10 | 2 | View PDF | |
| ULNA-30-0200-1800-15P | 2 - 18 | 30 | 15 | 2 | View PDF | |
| ULNA-40-0200-1800-5P | 2 - 18 | 40 | 5 | 2 | View PDF | |
| ULNA-40-0200-1800-10P | 2 - 18 | 40 | 10 | 2 | View PDF | |
| ULNA-40-0200-1800-15P | 2 - 18 | 40 | 15 | 2 | View PDF | |
| ULNA-XX-0600-1800-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0600-1800-5P | 6 - 18 | 20 | 5 | 1.4 | View PDF | |
| ULNA-20-0600-1800-10P | 6 - 18 | 20 | 10 | 1.4 | View PDF | |
| ULNA-20-0600-1800-15P | 6 - 18 | 20 | 15 | 1.4 | View PDF | |
| ULNA-30-0600-1800-5P | 6 - 18 | 30 | 5 | 1.3 | View PDF | |
| ULNA-30-0600-1800-10P | 6 - 18 | 30 | 10 | 1.3 | View PDF | |
| ULNA-30-0600-1800-15P | 6 - 18 | 30 | 15 | 1.3 | View PDF | |
| ULNA-40-0600-1800-5P | 6 - 18 | 40 | 5 | 1.3 | View PDF | |
| ULNA-40-0600-1800-10P | 6 - 18 | 40 | 10 | 1.3 | View PDF | |
| ULNA-40-0600-1800-15P | 6 - 18 | 40 | 15 | 1.3 | View PDF | |
| ULNA-XX-1200-1800-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-1200-1800-5P | 12 - 18 | 20 | 5 | 1.1 | View PDF | |
| ULNA-20-1200-1800-10P | 12 - 18 | 20 | 10 | 1.1 | View PDF | |
| ULNA-20-1200-1800-15P | 12 - 18 | 20 | 15 | 1.1 | View PDF | |
| ULNA-30-1200-1800-5P | 12 - 18 | 30 | 5 | 1 | View PDF | |
| ULNA-30-1200-1800-10P | 12 - 18 | 30 | 10 | 1 | View PDF | |
| ULNA-30-1200-1800-15P | 12 - 18 | 30 | 15 | 1 | View PDF | |
| ULNA-40-1200-1800-5P | 12 - 18 | 40 | 5 | 1 | View PDF | |
| ULNA-40-1200-1800-10P | 12 - 18 | 40 | 10 | 1 | View PDF | |
| ULNA-40-1200-1800-15P | 12 - 18 | 40 | 15 | 1 | View PDF | |
| ULNA-XX-0010-2600-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0010-2600-5P | 0.1 - 26 | 20 | 5 | 2.6 | View PDF | |
| ULNA-20-0010-2600-10P | 0.1 - 26 | 20 | 10 | 2.1 | View PDF | |
| ULNA-20-0010-2600-15P | 0.1 - 26 | 20 | 15 | 2.6 | View PDF | |
| ULNA-30-0010-2600-5P | 0.1 - 26 | 30 | 5 | 2.5 | View PDF | |
| ULNA-30-0010-2600-10P | 0.1 - 26 | 30 | 10 | 2.5 | View PDF | |
| ULNA-30-0010-2600-15P | 0.1 - 26 | 30 | 15 | 2.5 | View PDF | |
| ULNA-40-0010-2600-5P | 0.1 - 26 | 40 | 5 | 2.5 | View PDF | |
| ULNA-40-0010-2600-10P | 0.1 - 26 | 40 | 10 | 2.5 | View PDF | |
| ULNA-40-0010-2600-15P | 0.1 - 26 | 40 | 15 | 2.5 | View PDF | |
| ULNA-XX-0200-2600-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0200-2600-5P | 2 - 26 | 20 | 5 | 2.5 | View PDF | |
| ULNA-20-0200-2600-10P | 2 - 26 | 20 | 10 | 2.5 | View PDF | |
| ULNA-20-0200-2600-15P | 2 - 26 | 20 | 15 | 2.5 | View PDF | |
| ULNA-30-0200-2600-5P | 2 - 26 | 30 | 5 | 2.4 | View PDF | |
| ULNA-30-0200-2600-10P | 2 - 26 | 30 | 10 | 2.4 | View PDF | |
| ULNA-30-0200-2600-15P | 2 - 26 | 30 | 15 | 2.4 | View PDF | |
| ULNA-40-0200-2600-5P | 2 - 26 | 40 | 5 | 2.4 | View PDF | |
| ULNA-40-0200-2600-10P | 2 - 26 | 40 | 10 | 2.4 | View PDF | |
| ULNA-40-0200-2600-15P | 2 - 26 | 40 | 15 | 2.4 | View PDF | |
| ULNA-XX-1200-2600-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-1200-2600-5P | 12 - 26 | 20 | 5 | 2.5 | View PDF | |
| ULNA-20-1200-2600-10P | 12 - 26 | 20 | 10 | 2.5 | View PDF | |
| ULNA-20-1200-2600-15P | 12 - 26 | 20 | 15 | 2.5 | View PDF | |
| ULNA-30-1200-2600-5P | 12 - 26 | 30 | 5 | 2.4 | View PDF | |
| ULNA-30-1200-2600-10P | 12 - 26 | 30 | 10 | 2.4 | View PDF | |
| ULNA-30-1200-2600-15P | 12 - 26 | 30 | 15 | 2.4 | View PDF | |
| ULNA-40-1200-2600-5P | 12 - 26 | 40 | 5 | 2.4 | View PDF | |
| ULNA-40-1200-2600-10P | 12 - 26 | 40 | 10 | 2.4 | View PDF | |
| ULNA-40-1200-2600-15P | 12 - 26 | 40 | 15 | 2.4 | View PDF | |
| ULNA-XX-1800-2650-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-1800-2650-5P | 18 - 26.5 | 20 | 5 | 1.7 | View PDF | |
| ULNA-20-1800-2650-10P | 18 - 26.5 | 20 | 10 | 1.7 | View PDF | |
| ULNA-20-1800-2650-15P | 18 - 26.5 | 20 | 15 | 1.7 | View PDF | |
| ULNA-30-1800-2650-5P | 18 - 26.5 | 30 | 5 | 1.6 | View PDF | |
| ULNA-30-1800-2650-10P | 18 - 26.5 | 30 | 10 | 1.6 | View PDF | |
| ULNA-30-1800-2650-15P | 18 - 26.5 | 30 | 15 | 1.6 | View PDF | |
| ULNA-40-1800-2650-5P | 18 - 26.5 | 40 | 5 | 1.6 | View PDF | |
| ULNA-40-1800-2650-10P | 18 - 26.5 | 40 | 10 | 1.6 | View PDF | |
| ULNA-40-1800-2650-15P | 18 - 26.5 | 40 | 15 | 1.6 | View PDF | |
| ULNA-XX-0010-4000-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0010-4000-5P | 0.1 - 40 | 20 | 5 | 5.5 | View PDF | |
| ULNA-20-0010-4000-10P | 0.1 - 40 | 20 | 10 | 5.5 | View PDF | |
| ULNA-20-0010-4000-15P | 0.1 - 40 | 20 | 15 | 5.5 | View PDF | |
| ULNA-30-0010-4000-5P | 0.1 - 40 | 30 | 5 | 5.4 | View PDF | |
| ULNA-30-0010-4000-10P | 0.1 - 40 | 30 | 10 | 5.4 | View PDF | |
| ULNA-30-0010-4000-15P | 0.1 - 40 | 30 | 15 | 5.4 | View PDF | |
| ULNA-40-0010-4000-5P | 0.1 - 40 | 40 | 5 | 5.4 | View PDF | |
| ULNA-40-0010-4000-10P | 0.1 - 40 | 40 | 10 | 5.4 | View PDF | |
| ULNA-40-0010-4000-15P | 0.1 - 40 | 40 | 15 | 5.4 | View PDF | |
| ULNA-XX-0200-4000-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-0200-4000-5P | 2 - 4 | 20 | 5 | 5.4 | View PDF | |
| ULNA-20-0200-4000-10P | 2 - 4 | 20 | 10 | 5.4 | View PDF | |
| ULNA-20-0200-4000-15P | 2 - 4 | 20 | 15 | 5.4 | View PDF | |
| ULNA-30-0200-4000-5P | 2 - 4 | 30 | 5 | 5.3 | View PDF | |
| ULNA-30-0200-4000-10P | 2 - 4 | 30 | 10 | 5.3 | View PDF | |
| ULNA-30-0200-4000-15P | 2 - 4 | 30 | 15 | 5.3 | View PDF | |
| ULNA-40-0200-4000-5P | 2 - 40 | 40 | 5 | 5.3 | View PDF | |
| ULNA-40-0200-4000-10P | 2 - 40 | 40 | 10 | 5.3 | View PDF | |
| ULNA-40-0200-4000-15P | 2 - 40 | 40 | 15 | 5.3 | View PDF | |
| ULNA-XX-1800-4000-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-1800-4000-5P | 18 - 40 | 20 | 5 | 2.9 | View PDF | |
| ULNA-20-1800-4000-10P | 18 - 40 | 20 | 10 | 2.9 | View PDF | |
| ULNA-20-1800-4000-15P | 18 - 40 | 20 | 15 | 2.9 | View PDF | |
| ULNA-30-1800-4000-5P | 18 - 40 | 30 | 5 | 2.8 | View PDF | |
| ULNA-30-1800-4000-10P | 18 - 40 | 30 | 10 | 2.8 | View PDF | |
| ULNA-30-1800-4000-15P | 18 - 40 | 30 | 15 | 2.8 | View PDF | |
| ULNA-40-1800-4000-5P | 18 - 40 | 40 | 5 | 2.8 | View PDF | |
| ULNA-40-1800-4000-10P | 18 - 40 | 40 | 10 | 2.8 | View PDF | |
| ULNA-40-1800-4000-15P | 18 - 40 | 40 | 15 | 2.8 | View PDF | |
| ULNA-XX-2650-4000-XXP | ||||||
|---|---|---|---|---|---|---|
| Model Name | Frequency Range (GHz) | Gain (dB min.) | P1dB (dBm min.) | Noise Figure (dB max.) | Data Sheet Link | |
| ULNA-20-2650-4000-5P | 26.5 - 40 | 20 | 5 | 2.5 | View PDF | |
| ULNA-20-2650-4000-10P | 26.5 - 40 | 20 | 10 | 2.5 | View PDF | |
| ULNA-20-2650-4000-15P | 26.5 - 40 | 20 | 15 | 2.5 | View PDF | |
| ULNA-30-2650-4000-5P | 26.5 - 40 | 30 | 5 | 2.4 | View PDF | |
| ULNA-30-2650-4000-10P | 26.5 - 40 | 30 | 10 | 2.4 | View PDF | |
| ULNA-30-2650-4000-15P | 26.5 - 40 | 30 | 15 | 2.4 | View PDF | |
| ULNA-40-2650-4000-5P | 26.5 - 40 | 40 | 5 | 2.4 | View PDF | |
| ULNA-40-2650-4000-10P | 26.5 - 40 | 40 | 10 | 2.4 | View PDF | |
| ULNA-40-2650-4000-15P | 26.5 - 40 | 40 | 15 | 2.4 | View PDF | |
For over 70 years, Narda-MITEQ, the pioneers in Amplifier development, have been customizing to our customers specific requirements. This can include new design efforts, modifications to existing designs for performance and mechanical needs, as well as additional testing and environmental screening.
Please contact Component Sales with any special requirements you may have: Tel: 631-231-9220
All amplifier products are backed by Narda-MITEQ's Warranty and most are available as RoHS Compliant components.
