New Product: Space Low Noise Amplifiers (SLNA)

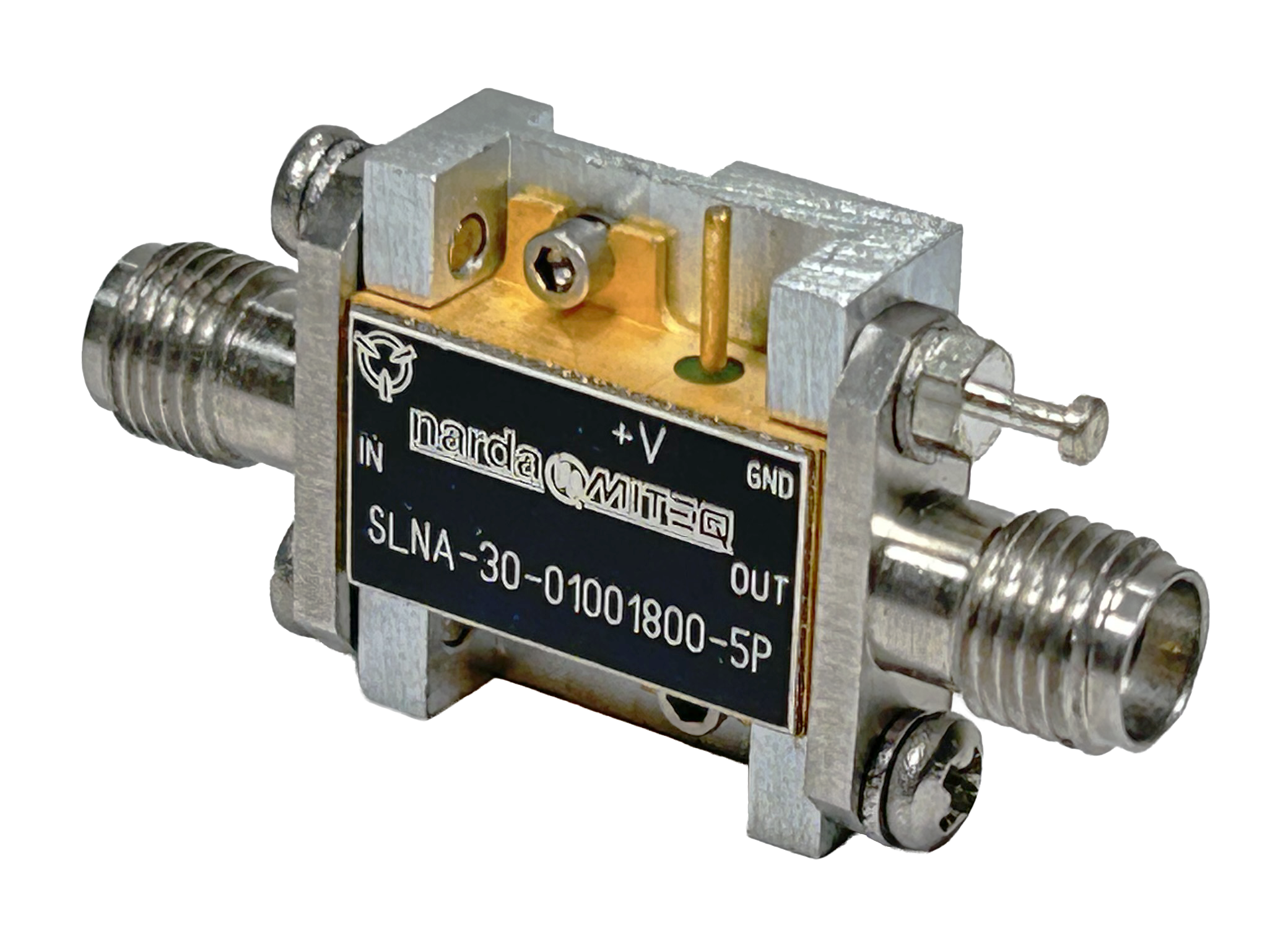

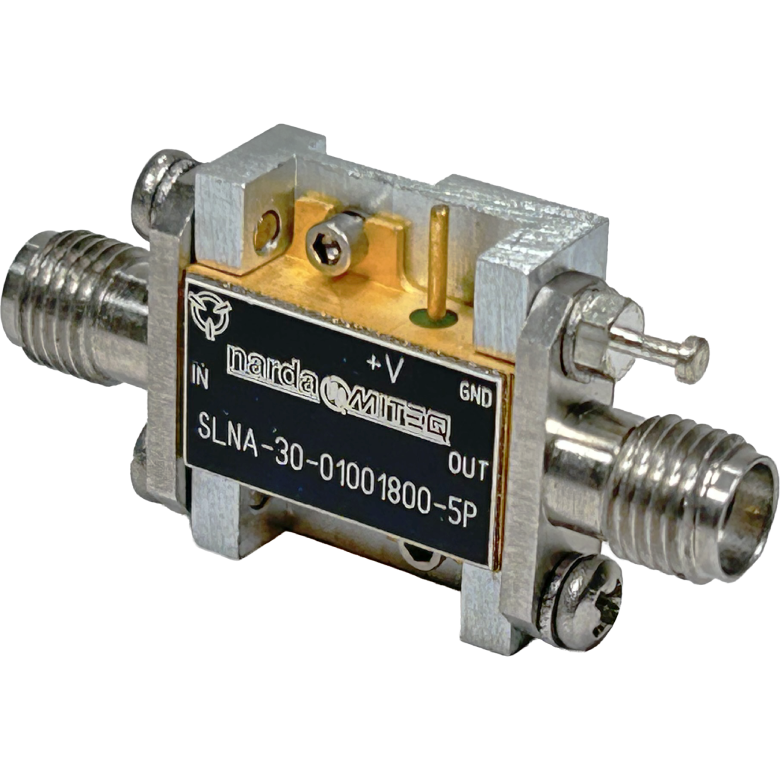

Narda-MITEQ's SLNA family of low-noise amplifiers (LNAs) are commercial-off-the-shelf (COTS) solutions designed for Space Flight applications, ranging from LEO to Deep Space missions.
- Frequency Range: 100 MHz to 40 GHz (VHF to Ka-Band)
- Gain Options: 30 dB, 40 dB, or 50 dB
- Screening Levels: From NASA EEE-INST-002 Level 3 to MIL-PRF-38534 Class K
Leveraging Narda-MITEQ's extensive and long-standing space heritage in low-noise amplifier technology, the SLNAs use hermetically sealed Kovar housings, provide radiation tolerance up to 200 krad, and utilize materials and processes with proven flight record while simultaneously reducing mission risk and delivering substantial cost and lead-time savings.
| Model Name | Frequency Range (GHz) |
Gain (dB min.) |
P1dB (dBm min.) |
Noise Figure (dB max.) |
Data Sheet Link |
|
|---|---|---|---|---|---|---|
| SLNA-30-00101800-5P | 0.1 - 18 | 30 | 5 | 2.5 | View PDF | |
| SLNA-30-01000200-5P | 1 - 2 | 30 | 5 | 0.7 | View PDF | |
| SLNA-40-01000200-5P | 1 - 2 | 40 | 5 | 0.7 | View PDF | |
| SLNA-50-01000200-5P | 1 - 2 | 50 | 5 | 0.7 | View PDF | |
| SLNA-30-01150165-0P | 1.15 - 1.65 | 30 | 0 | 0.7 | View PDF | |
| SLNA-40-01150165-0P | 1.15 - 1.65 | 40 | 0 | 0.7 | View PDF | |
| SLNA-50-01150165-0P | 1.15 - 1.65 | 50 | 0 | 0.7 | View PDF | |
| SLNA-30-02000400-5P | 2 - 4 | 30 | 5 | 0.6 | View PDF | |
| SLNA-40-02000400-5P | 2 - 4 | 40 | 5 | 0.6 | View PDF | |
| SLNA-50-02000400-5P | 2 - 4 | 50 | 5 | 0.6 | View PDF | |
| SLNA-30-04000800-5P | 4 - 8 | 30 | 5 | 0.7 | View PDF | |
| SLNA-40-04000800-5P | 4 - 8 | 40 | 5 | 0.7 | View PDF | |
| SLNA-50-04000800-5P | 4 - 8 | 50 | 5 | 0.7 | View PDF | |
| SLNA-30-08001200-5P | 8 - 12 | 30 | 5 | 0.9 | View PDF | |
| SLNA-40-08001200-5P | 8 - 12 | 40 | 5 | 0.9 | View PDF | |
| SLNA-50-08001200-5P | 8 - 12 | 50 | 5 | 0.9 | View PDF | |
| SLNA-30-18002650-5P | 18 - 26.5 | 30 | 5 | 2 | View PDF | |
| SLNA-30-26004000-5P | 26 - 40 | 30 | 5 | 2.7 | View PDF | |
For over 70 years, Narda-MITEQ, the pioneers in Amplifier development, have been customizing to our customers specific requirements. This can include new design efforts, modifications to existing designs for performance and mechanical needs, as well as additional testing and environmental screening.
Please contact Component Sales with any special requirements you may have: Tel: 631-231-9220
All amplifier products are backed by Narda-MITEQ's Warranty and most are available as RoHS Compliant components.
